Eigenschaften

Technische Daten

Applicable Industries: Hotels, Garment Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction worksÂ , Energy & Mining, Food & Beverage Shops, Other

Showroom Location: Canada, Turkey, United Kingdom, Germany, Philippines, Indonesia, Japan, Malaysia

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: Water gall, Heating device

Condition: New

Type: Natural Circulation

Usage: Industrial

Structure: Water Tube

Pressure: Low Pressure

Steam Production: 0.5t/h~1.0t/h

Style: VERTICAL

Fuel: Electricity, firewood, biomass particles, fuel oil, gas

Output: Steam

Dimension(L*W*H): Customized

Weight: Customized

Warranty: 1 Year

Key Selling Points: Automatic

Product name: Small Industrial Steam Generator

Application: Industrial Requiring Steam

Color: Customized

Voltage: Customized

Water Capacity: 16-30kg

Rated Working Pressure: 0.4/0.7Mpa

Main Boiler Body Lifespan: Around 8-10 years

Steam Temperature: 120/151/170â„ƒ

Control: Microcomputer Controller

After Warranty Service: Video Technical Support

Grundinformation

Zahlung und Versand AGB

Packaging Details: Wooden box

Supply Ability: 30 Piece/Pieces per Month

Produkt-Beschreibung

Product Display

Product Name	Small Industrial Steam Generator
Application	Industrial Requiring Steam
Color	Customized
Voltage	Customized
Water Capacity	16-30kg
Rated Working Pressure	0.4/0.7Mpa
Main Boiler Body Lifespan	Around 8-10 years
Steam Temperature	120/151/170℃
Control	Microcomputer Controller
After Warranty Service	Video Technical Support

Details Images

1. The fuel contains a large amount of hydrogen, which produces a large amount of water vapor when burned. After 1NM3 natural gas is burned, it can produce 1.55KG of water vapor, which has considerable latent heat of vaporization, about 3700KJ, which accounts for about 10% of the low calorific value of natural gas. When the exhaust gas temperature is high, the water vapor cannot be condensed to release heat, and is discharged with the flue gas, and the heat is wasted. At the same time, the high-temperature flue gas also takes away a large amount of sensible heat, which together causes a larger exhaust loss. 2. The flue gas condensation waste heat recovery device uses lower temperature water or air to cool the flue gas to reduce the flue gas temperature. Close to the heat exchange surface area, the water vapor in the flue gas condenses, and at the same time realizes the sensible heat release and water vapor of the flue gas The latent heat of condensation is released, and the water or air in the heat exchanger absorbs heat to be heated, which realizes heat energy recovery and improves the thermal efficiency of the boiler. 3. Improved boiler thermal efficiency: 1NM3 natural gas combustion produces theoretical flue gas volume of about 10.3 NM3 (about 12.5KG). Taking the excess air coefficient of 1.3 as an example, 14 NM3 of flue gas (about 16.6KG) is produced. When the temperature of the flue gas is reduced from 200°C to 70°C, the physical sensible heat is about 1600KJ, the water vapor condensation rate is 50%, and the latent heat of vaporization is about 1850 KJ. The total heat release is 3450 KJ, which is about 10% of the low calorific value of natural gas. If 80% of the flue gas is taken into the thermal energy recovery device, the thermal energy utilization rate can be increased by more than 8%, and the natural gas fuel can be saved by nearly 10%. 4. The heat pipe fin type condensing heat exchanger is used, which effectively reduces the exhaust gas temperature. 5. Safety: B-level manufacturing qualification, drawings are reviewed by the provincial special inspection institute with seals, and each product is The provincial special inspection institute passes the inspection and leaves the factory to ensure safety. 6. High efficiency: equipped with special high-efficiency energy-saving devices, advanced water-saving generators The energy device enters the furnace to make full use of the waste heat of the flue gas, and the gas production speed is greatly increased. 7. Stability: The factory is standardized Mass production, superb technology, stable product operation and low failure rate. 8. Simple: automatic control, with flame detection, pressure detection, overpressure protection, water shortage protection, overheating protection, automatic alarm, no need for special personnel on duty. 9. The factory installation of the whole product only needs to be connected to the power supply, steam pipe, water inlet pipe, sewage pipe and chimney, which saves installation costs and a large amount of installation materials. 10. Sophisticated configuration: equipped with flat-plate water level gauge, imported pressure controller, high temperature and high pressure water pump and high-quality burner, which can greatly reduce the failure rate of products. 11. Environmental protection: equipped with high-quality burner, full combustion, low flue gas emissions of particulate matter and nitrogen itch, in line with relevant national emission standards. 12. Substitution: This product is a one-piece factory, small in size, steam boilers less than 10 tons can be replaced by this steam generator in a modular combination. 13. Steam can be produced in 90-120 seconds, and pure steam can be continuously output at high pressure! The steam has a built-in insulation layer, and the thermal efficiency can reach more than 98%, saving fuel 14. Equipped with dual safety valves, dual water level gauges inside and outside, dual temperature control detection, multiple protections, and more safety.

Main Products

1. What's your advantage? A: Honest business with competitive price and professional service on export process. 2. How I believe you? A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed. 3. Can you give warranty of your products? A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. 4. Where are you? Can I visit you? A: Sure,welcome to you visit our factory at any time. 5. How about the delivery time? A: Within 15-35 days after we confirm you requirement. 6. What kind of payment does your company support? A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.

15kva natural gas generator YDNY-12

120kw gas generator 150kva natural gas generators for sale 23007401300MM

Silent Type Emergency Power Royal Brand Biogas 300KW 375KVA LPG /Natural Gas Generator With CHP Approved By ISO CE

CE Approved Heat And CHP Boiler Natural Gas High Efficiency Generator TG100GF Of Combined Output 100kw Power

Factory Hot Sale PCCE Gas Generator Set 250 KVA 200 KW Mall Standby Natural Gas Generator Set

Jk9.5L-G 200Kw natürliche kleine Gasmotoren der Generator-Satz-10Cc

hotels biomass gas generator equipment, biomass pyrolysis syngas

Ronsun Brand CE Approved continuous bio gas generator With Synchronous System

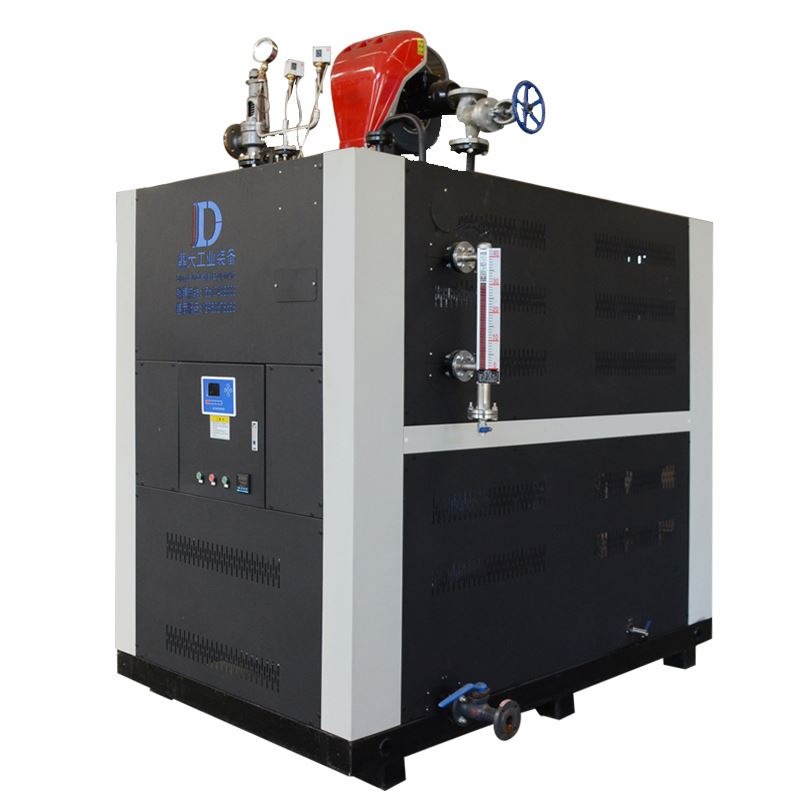

VERTICAL outstanding quality automatic electric water tube gas steam generators
